The box should contain:
-
A: the mini PC inside a foam insert;
-
B: one mounting plate;
-
C: one power cable & ac adapter;
-
D: one HDMI cable;
-
E: one thin, flat cable;
-
F: one bag of four small screws, & one bag of 10 various screws.
-
-
-
Plug the power cable into the AC cable.
-
Connect the power cable to the back of the computer (green arrow).
-
Connect the HDMI cable to the back of the computer (blue arrow).
-
Connect the power cable into an outlet, and the HDMI cable into your monitor.
-
Connect your mouse and key board, and power up the computer by clicking the silver power button once.
-
-
-

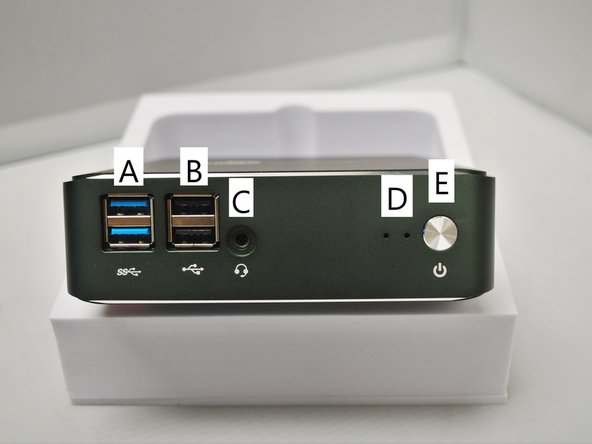

A: Two USB 3.0 "SuperSpeed" ports.
-
B: Two USB 2.0 ports.
-
C: Auxiliary cable port for headphones, earbuds, or speakers.
-
D: Indicator LEDs. The left LED is the bot indicator, and the one on the right is the hardrive indicator.
-
E: Power button.
-
-
-

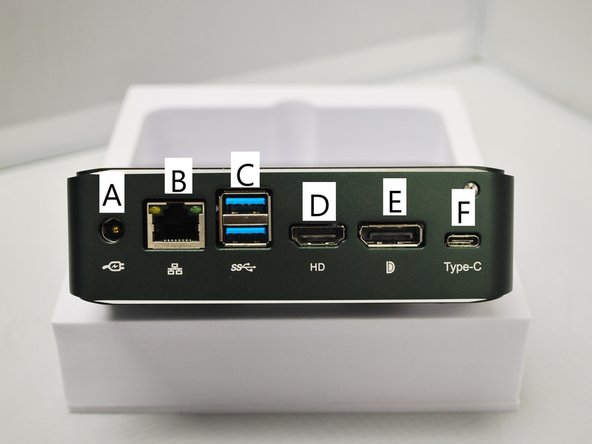

A: A/C power port.
-
B: Ethernet port.
-
C: Two USB 3.0 "SuperSpeed" ports.
-
D: HDMI port.
-
E: DisplayPort port.
-
F: USB type C port.
-
