02 - Identifying the Cradle's Ports & Cables

Written By: Eric Sutter
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

3

Time Required

Suggest a time??

Sections

1

Flags

0

  1. Cradle Power Jack AC Adaptor Port The Cradle Power Jack and AC Adaptor Port are two ends of the same cable.

    • Cradle Power Jack

    • AC Adaptor Port

    • The Cradle Power Jack and AC Adaptor Port are two ends of the same cable.

    • AC Adaptor Jack

    • Power Jack

    • The AC Adaptor Jack andPower Jack are two ends of the same cable.

    • Plug the AC Adaptor Jack into the AC Adaptor Port.

  2. A. Mobile Computer Compartment B. Spare Battery Compartment C. Micro USB Interface

    • A. Mobile Computer Compartment

    • B. Spare Battery Compartment

    • C. Micro USB Interface

    • D. Power Port Interface

    • Plug the Cradle Power Jack into the Power Port Interface.

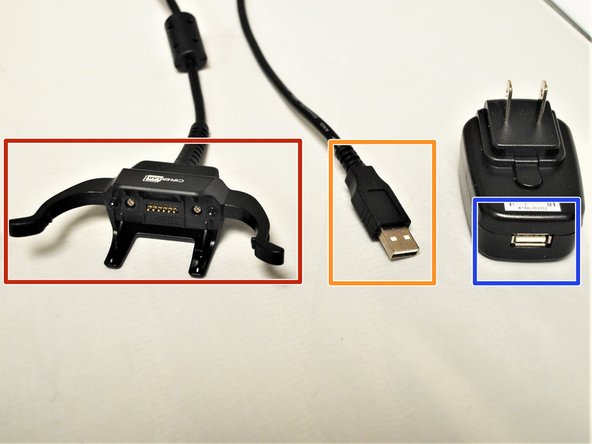

  3. Snap-On Charger USB

    • Snap-On Charger

    • USB

    • The Snap-On Charger and USB are two ends of the same cable.

    • USB Brick Port

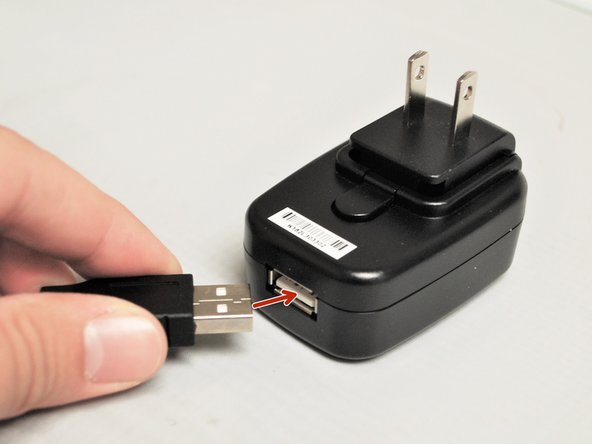

    • Plug the USB into the USB Brick Port
