There are 2 ways to charge the device. You can use:
-
The Snap - On Charging Cable, as shown in Step 2 or by clicking HERE,
-
The Cradle, shown in Step 3 or by clicking HERE.
-
Regardless of your charging method, See Step 4 to understand the LED Charging Indicator, or click HERE.
-
-
-
Fasten the Snap-on Charging Cable to the bottom end of the mobile computer.
-
It will 'Click' into place.
-
Connect the other end of the cable to a USB port or the adapter.
-
The LED on the top right of the device will begin to shine.
-
See Step 5 to understand the LED Charging Indicator.
-
-
-

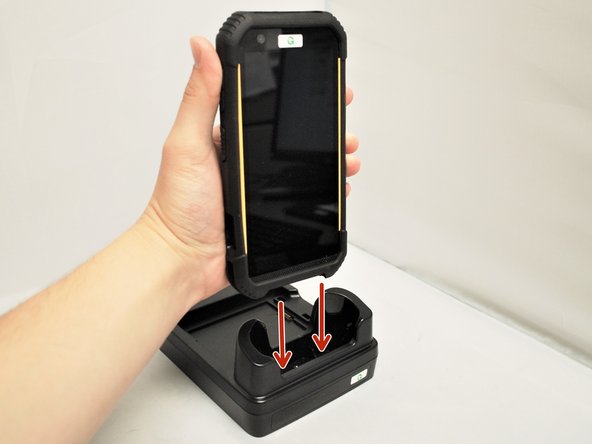

Insert the mobile computer into the Charging Cradle.
-

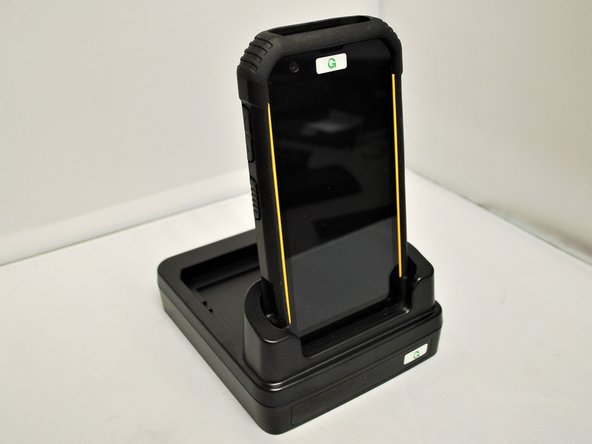

Connect the adapter to the Cradle, and plug the other end into an electrical outlet.
-
-
-

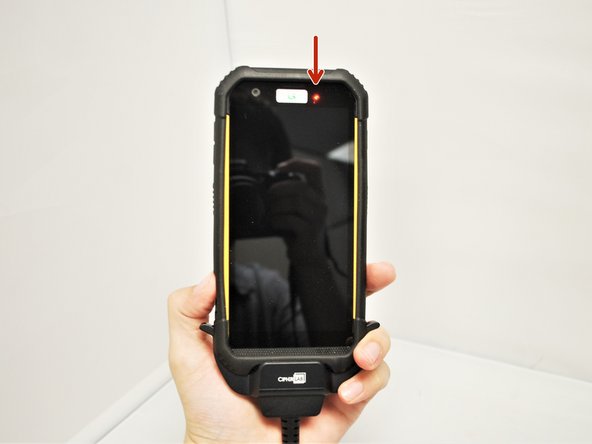

Green, solid: Charging Complete (more than 95%).
-
Red, solid: Charging Mobile Computer ( 0% to 95%)
-
Red, blinking: Charging error
-
No Light: Cable is not correctly connected/powered
-
