A. Support Beam
-
B. Swivel Arm
-
C. Clamp Brace (not needed for this build)
-
D. VESA Plate
-
E. Grommet Base
-
F. Clamp (not needed for this build)
-
G. Installation Manual
-
-
-
A. (2) M8x12 Bolt
-
B. (4) M4x12 Bolt, (4) M4x30 Bolt
-
C. Support Plate
-
D. (8) M8 Spacer, Wire Clip
-
E. (2) Wire Clip
-
F. M10 Bolt, M10 Washer, Spring Washer
-
G. Wrench, Allen Key Set
-
-
-

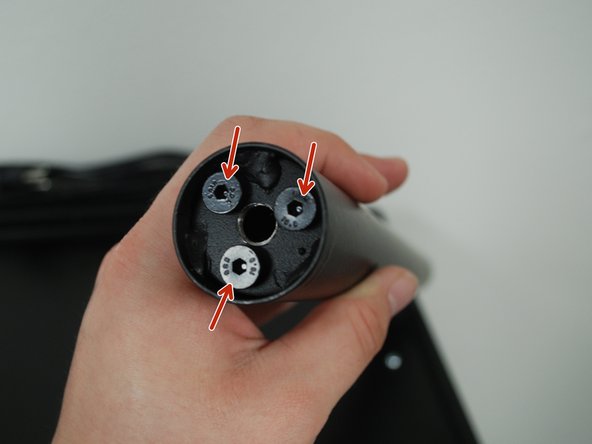

Identify the 3 bolts at the base of the support beam.
-

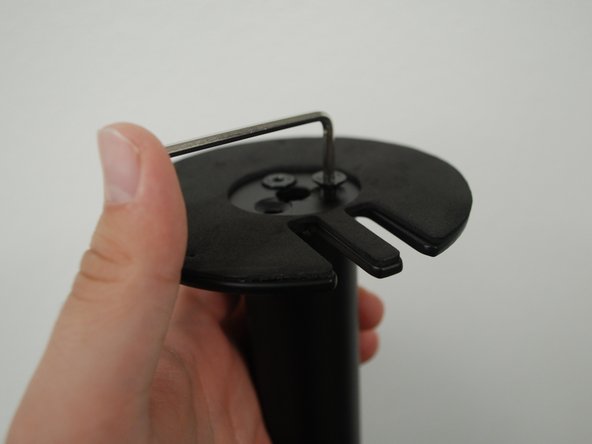

Remove the 3 bolts using the Allen Key.
-
Place the Grommet Base on the Support Beam and align the holes.
-
Reinsert the bolts through the Grommet Base and into the Support Beam and tighten with the Allen Key.
-
Place the Support Beam on the Grommet Base over the hole on the top platform of the cart.
-
-
-

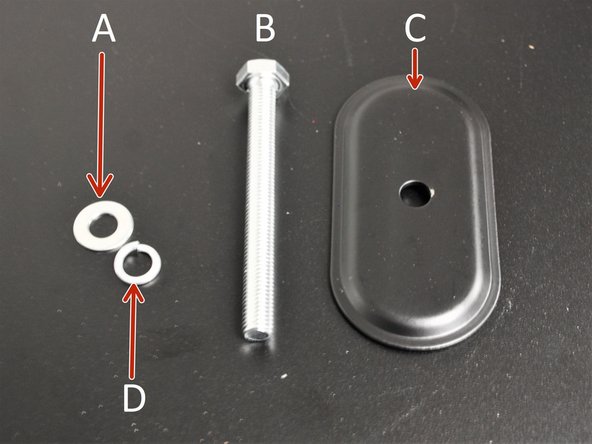

Remove the following from the packaging:
-

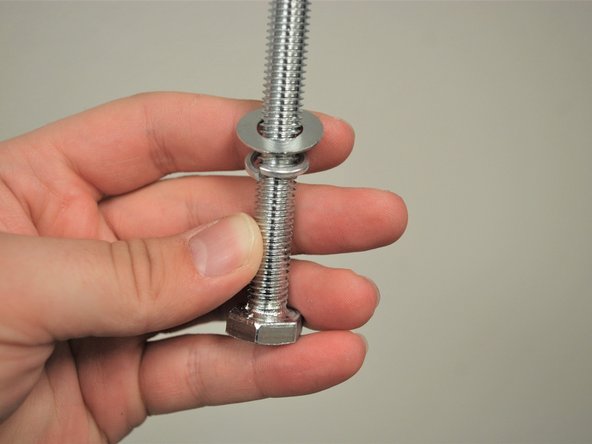

A. M10 Washer
-

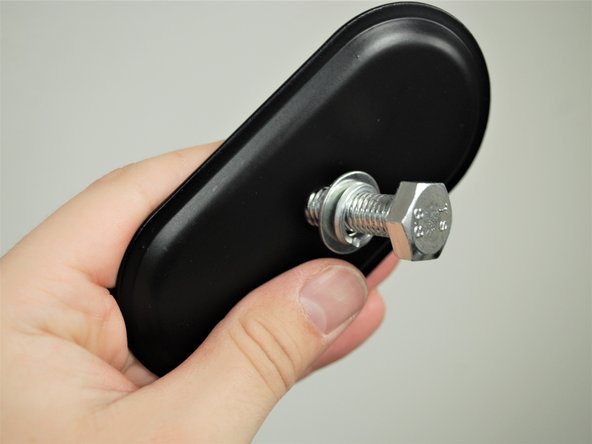

B. M10 Bolt
-
C. Support Plate
-
D. Spring Washer
-
Take the M10 Bolt and slide on the Spring Washer, them the M10 Washer
-
Add the Support Plate to the M10 Bolt facing the way shown in image 3
-
-
-

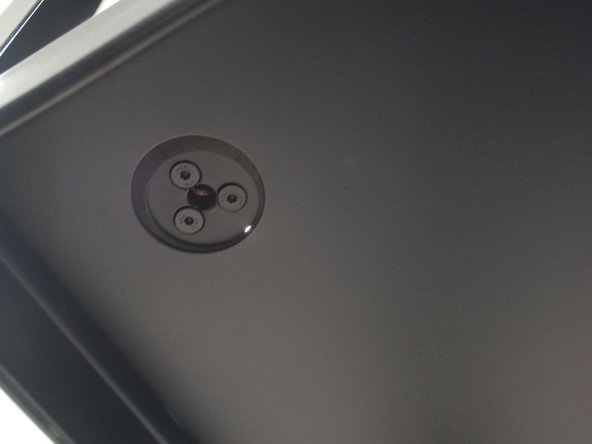

Look below the cart tier to view the bottom of the Support Beam through the hole.
-

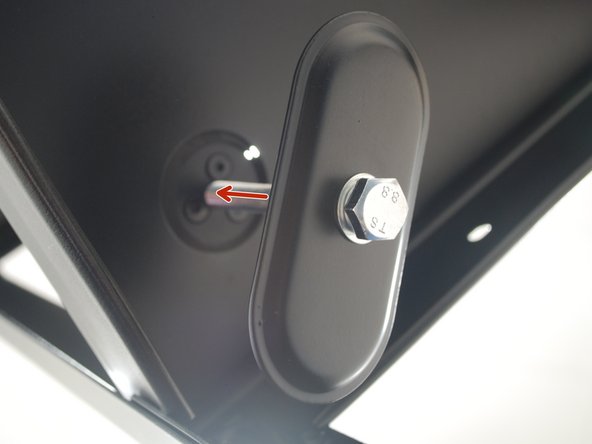

Begin to screw in the bolt to the center hole of the support beam using the wrench provided.
-

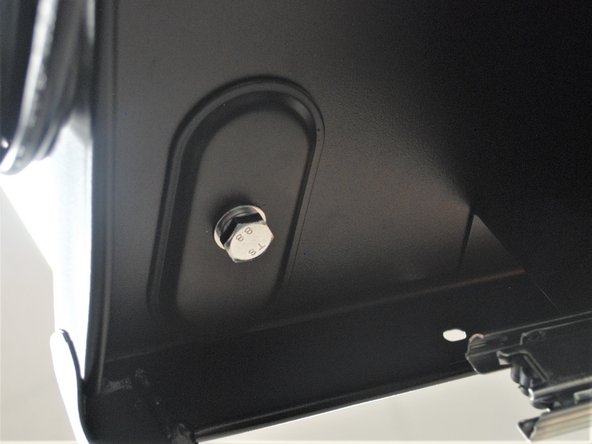

It helps if you hold the support plate against the shelf while you tighten the bolt.
-
Once the bolt is tightened all the way, it should look like Image 3.
-
-
-

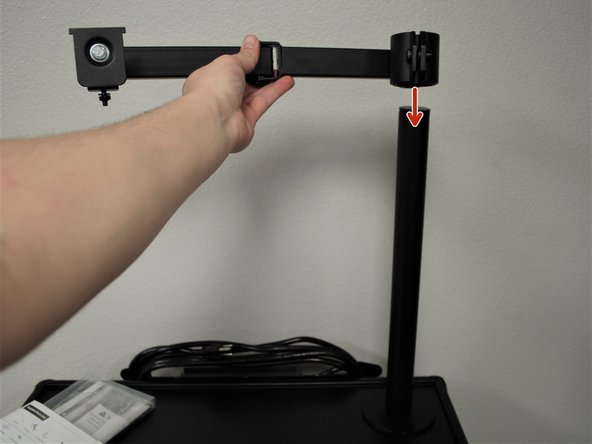

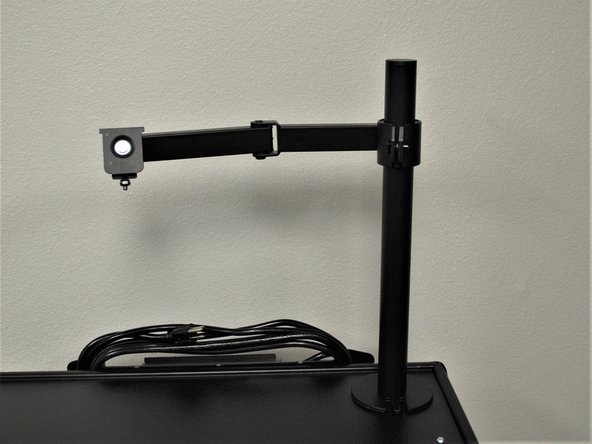

Slide the Swivel Arm over the Support Beam to the desired height.
-
It is recommended you go 2-5 inches down to ensure there is enough room for the monitor.
-

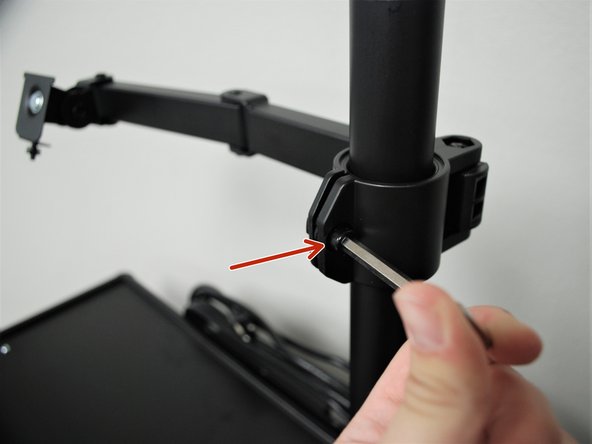

Use an Allen Key to tighten the bolt shown to tighten the grip the Swivel Arm has on the Support Beam.
-
-
-
Remove the provided monitor from the packaging.
-

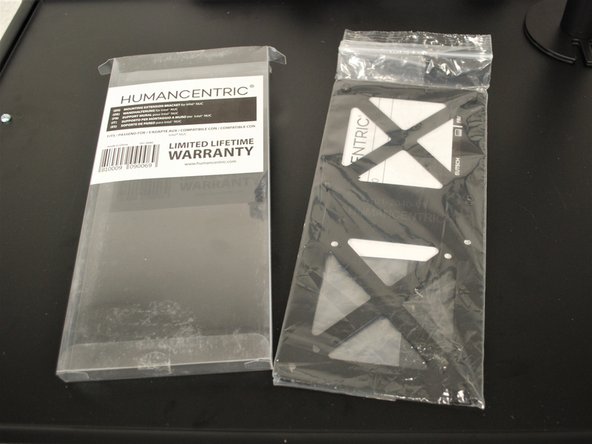

Remove the mounting extension bracket from the packaging.
-

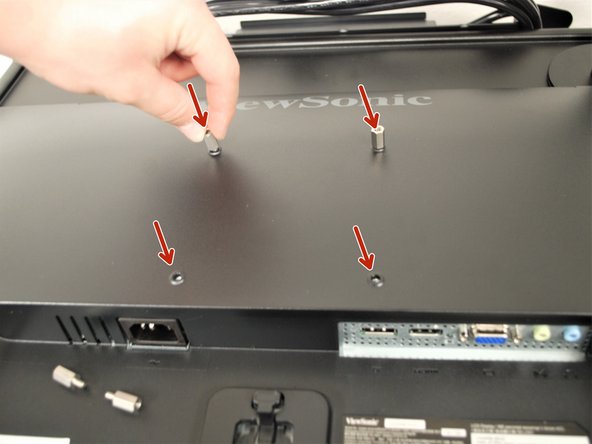

Twist the metal spacers into the 4 holes in the back of the monitor.
-

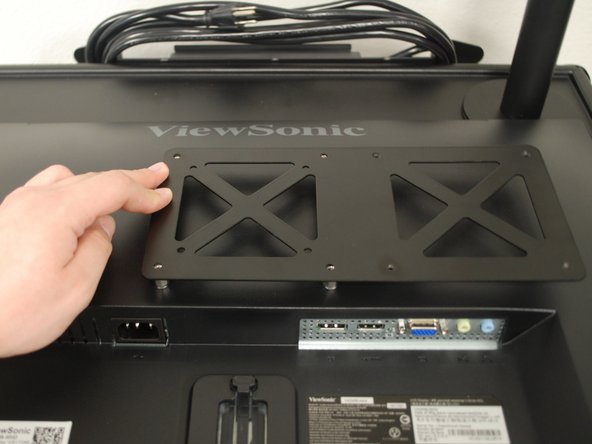

Set the mounting extension bracket on the metal spacers and align the holes.
-
-
-

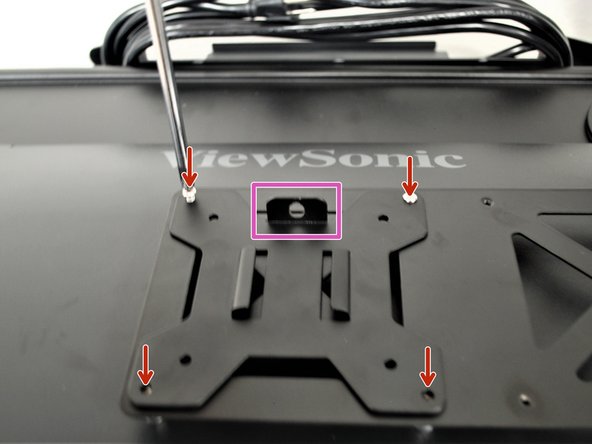

Place the VESA Plate provided over the extension bracket.
-
Ensure the tab with the hole (shown by the magenta box) is facing up.
-
Using a screwdriver, screw in the screws provided with the extension bracket.
-
Do this for all 4 holes into the metal spacers.
-
-
-

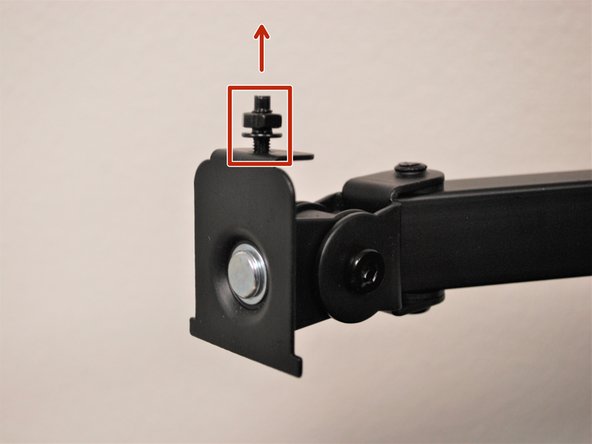

Ensure the bolt with the nut is facing up.
-

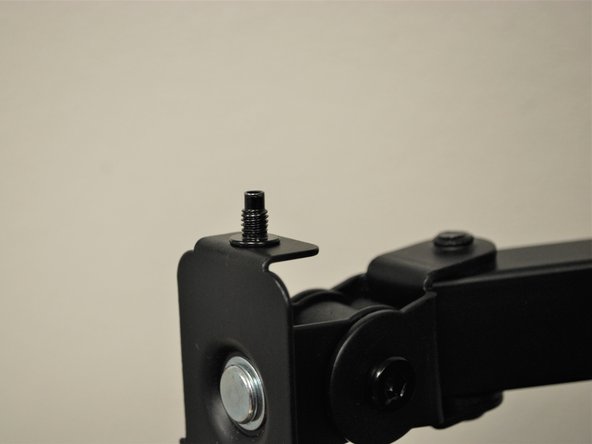

Remove the nut from the bolt.
-
Tighten the bolt down into the mount.
-
-
-
Slide the monitor VESA Plate over the Swivel Arm mount.
-

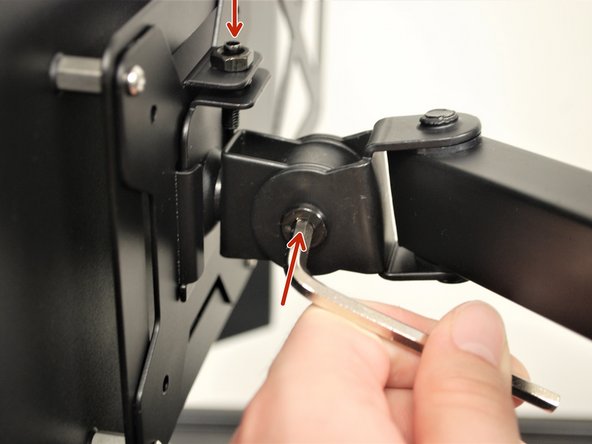

Reinstall the nut on the bolt to secure the monitor.
-
Tighten the bolt shown to set the monitor in place. This will stop it from falling on it's own.
-
-
-

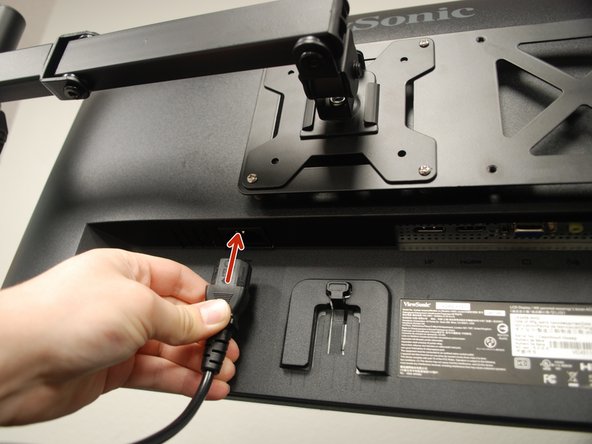

Insert the power cable into the back of the monitor.
-

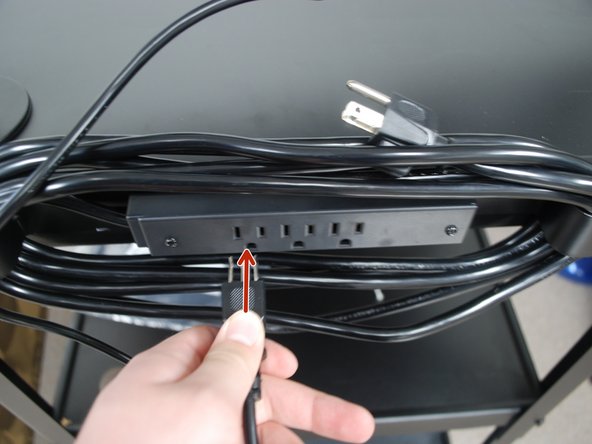

Plug the other end into the outlet behind the cart.
-
