04 - Charging

Written By: Eric Sutter
  • Comments: 0
  • Favorites: 0

Difficulty

Moderate

Steps

4

Time Required

Suggest a time??

Sections

1

Flags

0

  1. Fasten the Snap-on Charging Cable to the lower end of the mobile computer. Connect the other end of the cable to a USB port or the adapter. Fix the adapter plug onto the adapter, and plug in into an electrical outlet.

    • Fasten the Snap-on Charging Cable to the lower end of the mobile computer.

    • Connect the other end of the cable to a USB port or the adapter.

    • Fix the adapter plug onto the adapter, and plug in into an electrical outlet.

  2. A. Mobile Computer Compartment B. Spare Battery Compartment

    • A. Mobile Computer Compartment

    • B. Spare Battery Compartment

    • C. Micro USB Port

  3. Smoothly insert the mobile computer into the Charging Cradle. To more easily insert the mobile computer, remove the Velcro strap from the bottom on the back. Follow Guide 2 to remove the strap. Connect the adapter to the Cradle, and plug the other end into an electrical outlet.

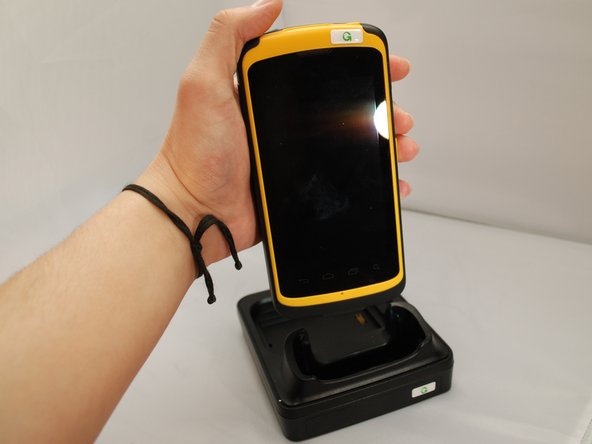

    • Smoothly insert the mobile computer into the Charging Cradle.

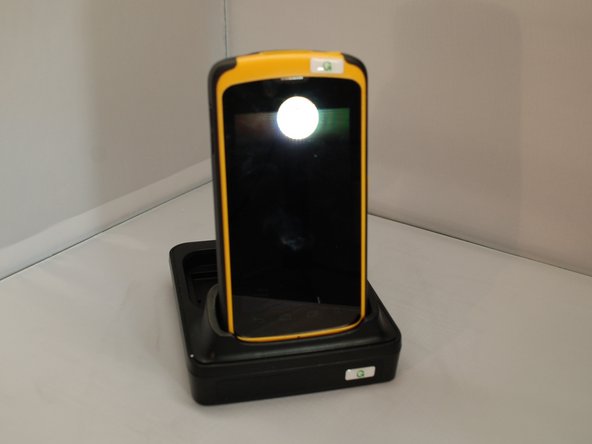

    • To more easily insert the mobile computer, remove the Velcro strap from the bottom on the back. Follow Guide 2 to remove the strap.

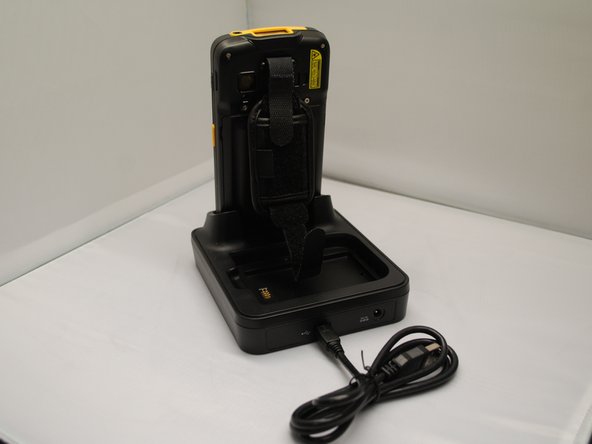

    • Connect the adapter to the Cradle, and plug the other end into an electrical outlet.

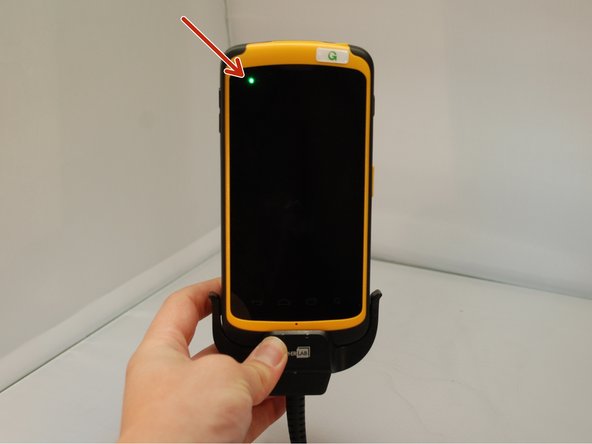

  4. Red, solid: Charging in progress

    • Red, solid: Charging in progress

    • Red, blink: Charging error

    • Green, solid: Charging completes

    • No light: The cable is not correctly connected

    • Not Charging could be the result of battery damage, battery’s failure to touch the connector, or AC plug coming off.

    • Charging error could be due to high battery temperature.
